What is an Absolute Encoder?

1. What is an Absolute Encoder?

An absolute encoder is a type of encoder that provides precise position information of an object or mechanical component. Unlike incremental encoders, which track movement using pulse counts, absolute encoders output a unique code for each position, ensuring accurate feedback regardless of power interruptions or resets. This capability makes absolute encoders highly reliable in applications where maintaining accurate position data is critical.

Absolute encoders are commonly used in industries such as automation, robotics, aerospace, medical equipment, and more, where high precision and real-time position feedback are required.


Cross Section of Assunmotor Absolute (Electromagnetic type) Encoder


2. How Do Absolute Encoders Work?

The core principle behind absolute encoders is converting rotational or linear displacement into a unique digital signal corresponding to a specific position. In an absolute encoder, the encoding disk or magnetic disk is marked with unique patterns that represent specific positions. These patterns could be optical marks (for optical encoders) or magnetic poles (for magnetic encoders).

  • Optical Encoders: These use a light source and photodetectors to detect changes in patterns on an encoding disk. As the disk rotates, the encoder generates a signal based on the unique position of the marks on the disk.

  • Magnetic Encoders: These use magnetic fields to detect position changes. They tend to be more rugged than optical encoders and are used in harsh environments.

  • Unique Position Code: Every position on the encoder disk corresponds to a unique binary, Gray code, or hexadecimal code, ensuring that no two positions share the same output code. Even if the system loses power, the encoder can maintain its position data and provide the correct output upon restarting.

  • No Need for Resetting: Unlike incremental encoders, which lose their position information when powered off, absolute encoders do not require resetting. The position is always available, making them suitable for applications where position accuracy is crucial, even after power cycles.

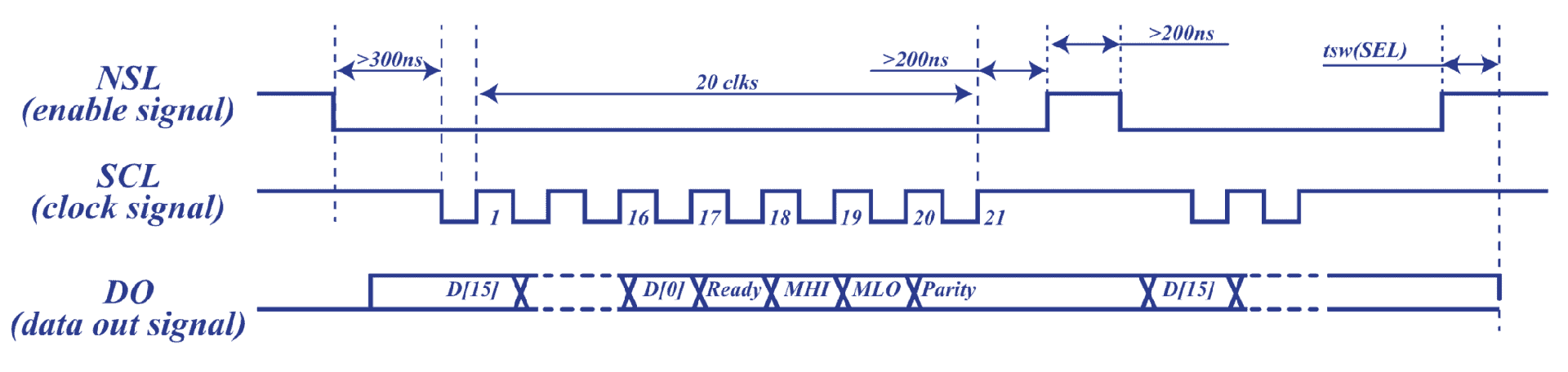

Assunmotor’s Absolute Encoder Output


3. Types of Absolute Encoders

Absolute encoders come in various types depending on their output method, encoding type, and working principle. Below are the primary types of absolute encoders:

  • Single-Turn Absolute Encoders: These encoders provide unique codes for positions within a single revolution. They are typically used in applications with limited rotational movement or where the position range is smaller.

  • Multi-Turn Absolute Encoders: These encoders can track positions over multiple rotations and provide higher resolution and larger position ranges. Multi-turn encoders are ideal for applications that require high precision and long-range rotation.

  • Optical Encoders: Optical absolute encoders use optical sensors and light sources to read patterns on the encoding disk. They offer high resolution but are sensitive to dust, dirt, and harsh environmental conditions.

  • Magnetic Encoders: Magnetic absolute encoders use magnetic fields to detect position, offering a more durable solution than optical encoders. These are ideal for use in environments with harsh conditions such as high temperatures or dust.

  • Serial and Parallel Output Encoders:

    • Serial Output: These encoders typically use communication protocols such as SSI, Modbus, CAN or Profibus to transmit position data over longer distances.

    • Parallel Output: These encoders provide direct output with multiple signal lines, typically used in short-distance, high-speed applications.


4. Key Features of Absolute Encoders

  • Unique Position Information: Every position on the encoder corresponds to a unique code, providing precise and accurate position data at all times.

  • No Reset Required: Absolute encoders do not require resetting after power cycles. They can retain position data even if the system is powered off, making them ideal for applications where reliability is crucial.

  • High Precision: Absolute encoders offer high resolution and accuracy, making them suitable for applications requiring precise position feedback, such as robotics, CNC machines, and more.

  • Multiple Output Formats: These encoders offer various output types, including analog signals, digital signals, and serial communication interfaces, providing flexibility to match different control systems.

  • Strong Durability: Magnetic absolute encoders, in particular, are known for their robustness, making them suitable for harsh environments where optical encoders might fail due to dust or moisture.


5. Applications of Absolute Encoders

Due to their high precision and reliability, absolute encoders are widely used in industries where accurate position feedback is essential. Some typical applications include:

  • Industrial Automation: In automated production lines, absolute encoders are used to control robotic arms, conveyors, and machine tools. Their precise feedback ensures that equipment follows predefined paths with accuracy.

  • Robotics: In robotics, absolute encoders are used to track the positions of robotic arms, mobile platforms, and other devices, providing real-time feedback to the control system. They are essential in applications requiring precise motion control, such as automated assembly or surgical robots.

  • Automotive Electronics: Absolute encoders are used in automotive applications like electric steering systems, window lifters, seat adjusters, and sunroof position monitoring. The precise position data ensures that these components function smoothly and respond to user input reliably.

  • Aerospace: In aerospace applications, absolute encoders are used in controlling flight surfaces, satellite positioning, and other critical systems. Their precise position feedback ensures safety and accurate control in flight operations.

  • Medical Equipment: Absolute encoders are used in medical devices like MRI machines, CT scanners, and robotic surgery tools. They provide accurate feedback to ensure safe and effective operation.

  • Elevator Systems: Absolute encoders are used to control the position of elevators, ensuring that they stop at the correct floor and provide safe, smooth operation.


6. Comparison: Absolute vs. Incremental Encoders

Here’s how absolute encoders compare to incremental encoders:

  • Position Information:

    • Absolute Encoder: Provides a unique code for each position, ensuring precise position tracking even if power is lost or the system is restarted.

    • Incremental Encoder: Relies on pulse counts to track position, losing position data if power is lost, requiring a reset or recalibration.

  • Precision:

    • Absolute Encoder: Offers higher precision and accuracy because each position has a unique code.

    • Incremental Encoder: Provides lower resolution and is typically used for speed or direction feedback, not precise position tracking.

  • Applications:

    • Absolute Encoder: Ideal for applications where position retention and high accuracy are essential, such as robotics, aerospace, and precision manufacturing.

    • Incremental Encoder: Suitable for applications that do not require position retention and are focused on relative position tracking, such as speed monitoring or basic motion control.


7. Advantages of Absolute Encoders

  • No Need for Reset: Absolute encoders maintain their position information even after power cycles, making them suitable for applications that cannot afford to lose position data.

  • High Precision: Absolute encoders offer superior accuracy and resolution, making them ideal for systems that require precise position control, such as robotics, CNC machines, and aerospace applications.

  • Wide Range of Applications: Absolute encoders are used in many critical applications, from industrial automation to medical devices, aerospace, and more, ensuring accurate, real-time position feedback.


8. Conclusion

Absolute encoders are vital components in modern automation, robotics, aerospace, and many other industries where precise position feedback is required. They provide unique, accurate position data and are highly reliable in critical applications. Unlike incremental encoders, absolute encoders do not require resetting after power cycles, and they can maintain position information even during power failures. Their versatility, accuracy, and reliability make them indispensable in high-precision and high-reliability applications.
