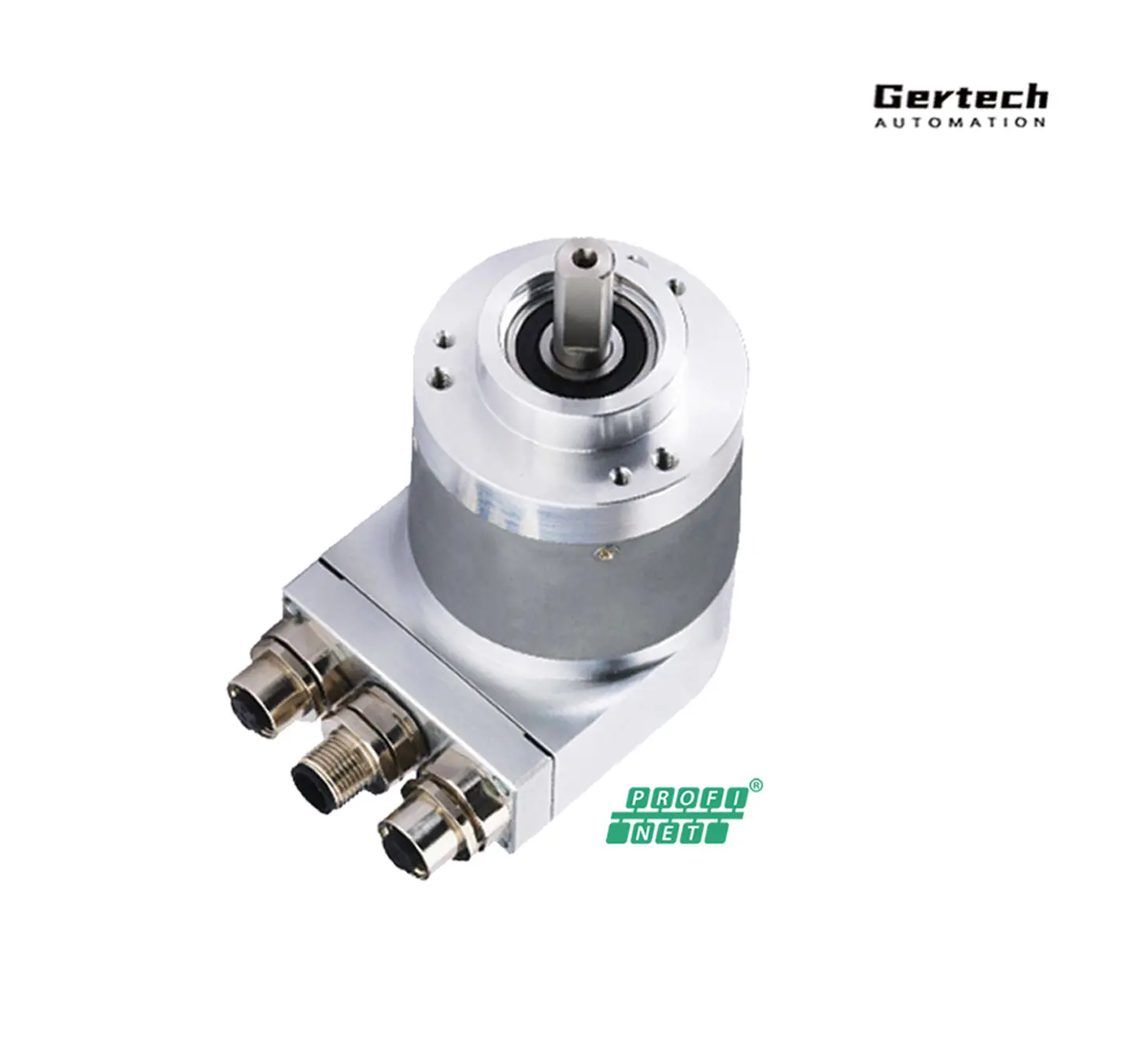

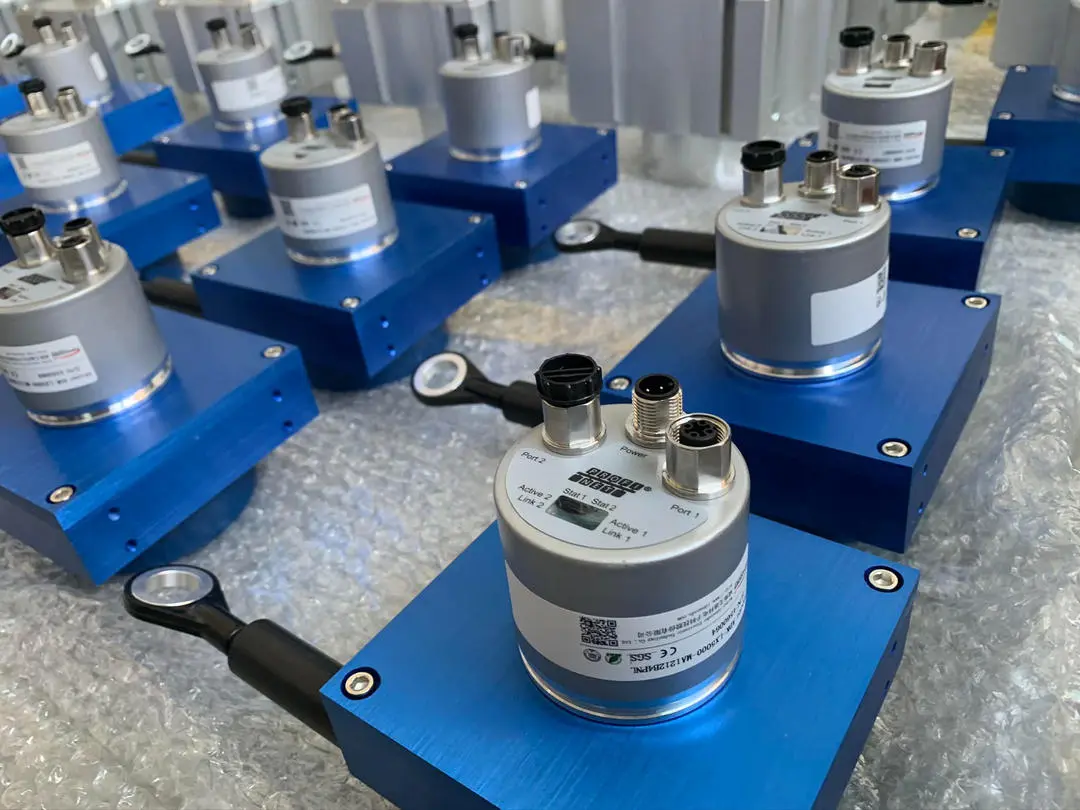

Profinet EtherNet Encoder

Profinet EtherNet Encoder

short description:

Model No.: GMA-S5810-1213-B4PELP Series

Profinet implements the interfacing to peripherals.[1][2] It defines the communication with field connected peripheral devices. Its basis is a cascading real-time concept. Profinet defines the entire data exchange between controllers (called “IO-Controllers”) and the devices (called “IO-Devices”), as well as parameter setting and diagnosis. IO-Controllers are typically a PLCDCS, or IPC; whereas IO-Devices can be varied: I/O blocks, drives, sensors, or actuators. The Profinet protocol is designed for the fast data exchange between Ethernet-based field devices and follows the provider-consumer model.[1] Field devices in a subordinate Profibus line can be integrated in the Profinet system seamlessly via an IO-Proxy (representative of a subordinate bus system).(From Wikipedia)


Product Detail

▶Housing Diameter: 58mm;

▶Solid/blind hollow Shaft:10mm,12mm,15mm;

▶Interface: Profinet;

▶Number of the absolute ascertainable revolutions: 8192ppr(13Bits)

▶Total number of turns:4096(12bits)

▶Supply Voltage:8-29v;

▶Output Code: Binary;

▶Vibration-resistant, corrosion-resistant, pollution-resistant;

Product characteristics
Housing Dia.:58mm
Solid Shaft Dia.:10mm
Electrical Data
Resolution:▶Number of the absolute ascertainable revolutions: 4096ppr(12Bits)         ▶Total number of turns:8192(13bits)
Interface:Profinet
Output Code:Binary, Gray, Gray Excess, BCD
Supply Voltage:8-29V
DiagnosticsDifferent faults and warnings for Memory, Temperature, Synchronization, Commissioning diagnostics, Commissioning invalid scaling, Communication, Master’s sign of life
FeaturesBoot-Loader, Round Axis, Flashing LEDs
Transmission Rate10/100 Mbit
Interface Cycle Time≥ 1 ms
Programming FunctionsResolution, time base and filter for velocity, preset, counting direction, IP-Address
Output
Output DriverEthernet
Supply Voltage10 – 32 VDC
Start-Up Time< 1 s
Reverse Polarity ProtectionYes
Short Circuit ProtectionYes
EMC: Emitted InterferenceDIN EN 61000-6-4
EMC: Noise ImmunityDIN EN 61000-6-2
MTTF65 years @ 40 °C
Sensor
TechnologyOptical
Resolution Singleturn13 bit
Total No. of Turns12 bit
Multiturn TechnologyMechanical Gearing (no Battery)
Accuracy (INL)±0.0220° (14 – 16 bit), ±0.0439° (≤13 bit)
CodeBinary
Environmental Specifications
Protection Class (Shaft)IP66/IP67
Protection Class (Housing)IP66/IP67
Operating Temperature-30 °C fixed (-22 °F), -5 °C flexible (+23 °F) – +70 °C (+158 °F)
Storage Temperature-40 °C (-40 °F) – +85 °C (+185 °F)
Humidity98% RH, no condensation
Mechanical Data
Connection Cap MaterialStainless Steel V4A (1.4404; 316 L)
Housing MaterialStainless Steel V4A (1.4404, 316 L)
Housing CoatingNo Coating
Flange TypeSolid Shaft ø 58mm ATEX
Flange MaterialStainless steel V4A (1.4404, 316 L)
Shaft TypeBlind Hollow, Depth = 30 mm
Shaft DiameterØ10 mm (0.55″)
Rotor Inertia≤ 35 gcm² [≤ 0.2 oz-in²]
Friction Torque≤ 3 Ncm @ 20 °C (4.2 oz-in @ 68 °F)
Max. Permissible Mechanical Speed≤ 3000 1/min
Shock Resistance≤ 100 g (half sine 11 ms, EN 60068-2-27)
Vibration Resistance≤ 10 g (10 Hz – 2000 Hz, EN 60068-2-6)
Length134 mm (5.28″)
Weight3110 g (6.86 lb)
Maximum Axial / Radial MisalignmentStatic ± 0.3 mm /± 0.5 mm; Dynamic ± 0.1 mm /± 0.2 mm
Electrical Connection
Connection OrientationRadial
Connection TypeCable / Connector
Minimum Bend Radius50 mm (2″) fixed, 100 mm (4″) flexing



Dimensions
