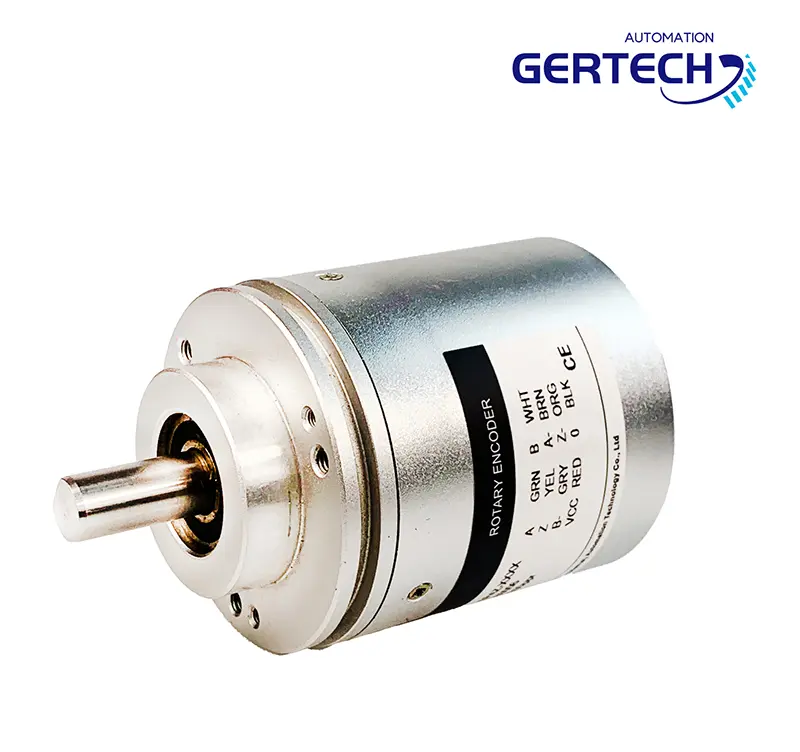

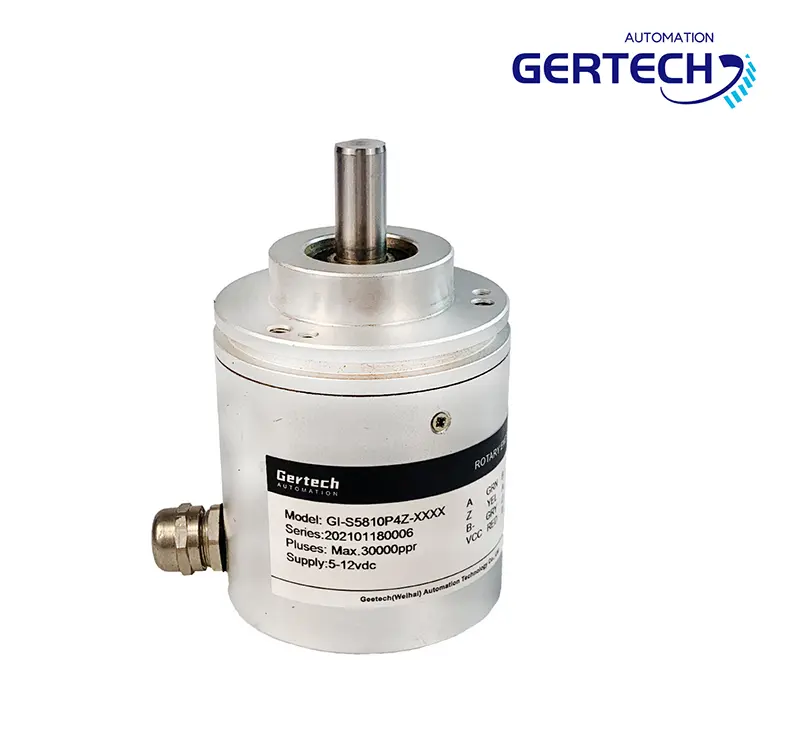

GSA-C Series CANopen Single Turn Bus-based Absolute Encoder

short description:

GSA-C Series Encoder is a single turn CANopen interface absolute encoder, CANopen is a CAN-based communication system. It comprises higher-layer protocols and profile specifications. CANopen has been developed as a standardized embedded network with highly flexible configuration capabilities. It was designed originally for motion-oriented machine control systems, such as handling systems. Today it is used in various application fields, such as medical equipment, off-road vehicles, maritime electronics, railway applications, or building automation.

Housing Diameter:38,50,58mm

Solid/hollow Shaft Diameter:6,8,10mm

Interface:CANopen

Resolution:Single turn max.16bits

Supply Voltage:5v,8-29v

Output Code:Binary, Gray, Gray Excess, BCD

Send email to us

Product Detail

1. Product Basic Information

Property	Description
Product Name	GSA‑C Series Encoder
Encoder Type	Single-turn absolute encoder with CANopen interface
Communication	CANopen (a CAN-based communication system that includes higher-layer protocols and profile specs)
Resolution	Single-turn: up to 16-bit
Housing Diameter	58 mm
Hollow Shaft Diameter	12 mm
Supply Voltage	8 – 30 V
Certificates	CE, ROHS, KC, ISO9001
Lead Time	Shipment within one week after full payment
Shipping Method	DHL or other logistics as agreed upon

2. Main Features and Operating Principle

Feature/Parameter	Details
Sensing Technology	Utilizes a permanent magnet and magnetic induction element to convert the angular displacement of the shaft into an electrical pulse signal output via magnetoelectric conversion.
Reliability & Lifespan	Designed for stability and high reliability with a long service life.
Interface	CANopen interface, compliant with the “encoder device class rule Class2”, typically used as a slave device.
Operating Environment	Vibration-resistant, corrosion-resistant, and pollution-resistant.
Application Fields	Widely used in automatic control and measurement systems, including machinery manufacturing, shipping, textiles, printing, aviation, military, test machines, elevators, etc.

3. CANopen and EDS Details

Property	Description
CANopen Interface	Communicates via CANopen. The encoder can switch between different operating states by sending specific NMT messages. For detailed information, please refer to CIA Standard Specification 301 and CIA Standard Specification 406 (available from www.can-cia.org).
EDS Files	EDS (Electronic Data Sheet) files are provided with the encoder and must be installed on the main CANopen controller before use.

4. Ordering, Packaging, and Support Information

Category	Details
Ordering and Lead Time	Shipment within one week after full payment
Shipping Method	Shipped via DHL or other agreed logistics methods
Packaging	Standard export packaging or as required by the buyer
Payment Methods	Bank transfer, Western Union, and PayPal
Quality Control	Inspected by a professional quality control team led by Mr. Hu, who has over 10 years of experience in the encoder industry.
Technical Support	Provided by a team led by Dr. Zhang, with breakthroughs in Profinet, EtherCAT, Modbus-TCP, and Power‑link developments.
Warranty and Service	1-year warranty with lifetime technical support
Contact Email	[email protected]

5. Encoder Selection Guide (Five Steps)

Step	Action	Details
1	Compare with Existing Brands	If you have used encoders from other brands, please provide the relevant details (such as model numbers) so that our engineers can recommend a cost-effective equivalent replacement.
2	Choose the Encoder Type	Options include: incremental encoder, absolute encoder, draw-wire sensor, or manual pulse generator.
3	Choose the Output Format/Interface	For incremental encoders: NPN, PNP, line driver, or push-pull output; for absolute encoders: interfaces such as Parallel, SSI, BISS, Modbus, CANopen, Profibus, DeviceNET, Profinet, EtherCAT, Power‑link, and Modbus TCP.
4	Select the Encoder Resolution	For Gertech: up to 50,000 ppr for incremental encoders; up to 29-bit for absolute encoders.
5	Select the Housing and Shaft Diameters	Choose according to your application requirements (for example, this model has a housing diameter of 58 mm and a shaft diameter of 12 mm).

6. Equivalent Replacement Products (Brands and Model Examples)

Brand	Equivalent Models/Series Examples
Omron	E6A2‑CS3C, E6A2‑CS3E, E6A2‑CS5C, E6A2‑CS5C, E6A2‑CW3C, E6A2‑CW3E, E6A2‑CW5C, E6A2‑CWZ3C, E6A2‑CWZ3E, E6A2‑CWZ5C; E6B2‑CS3C, E6B2‑CS3E, E6B2‑CS5C, E6B2‑CW3C, E6B2‑CW3E, E6B2‑CW5C, E6B2‑CWZ3C, E6B2‑CWZ3E, E6B2‑CBZ5C; E6C2‑CS3C, E6C2‑CS3E, E6C2‑CS5C, E6C2‑CS5C, E6C2‑CW3C, E6C2‑CW3E, E6C2‑CW5C, E6C2‑CWZ3C, E6C2‑CWZ3E, E6C2‑CBZ5C.
Koyo	TRD‑MX, TRD‑2E/1EH, TRD‑2T, TRD‑2TH, TRD‑S, TRD‑SH, TRD‑N, TRD‑NH, TRD‑J, TRD‑GK, TRD‑CH series.
Autonics	E30S, E40S, E40H, E50S, E50H, E60S, E60H series.

Additional Information

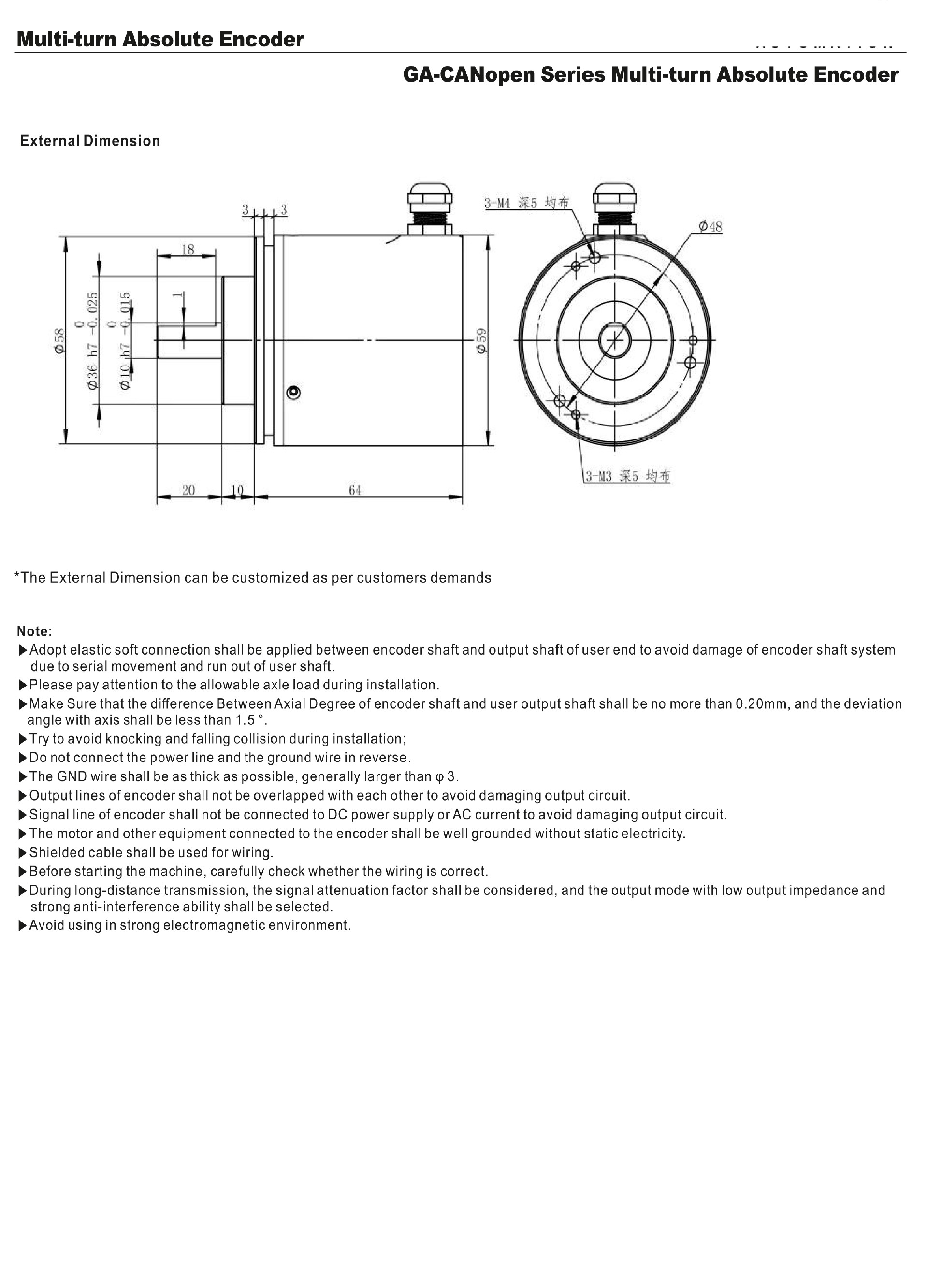

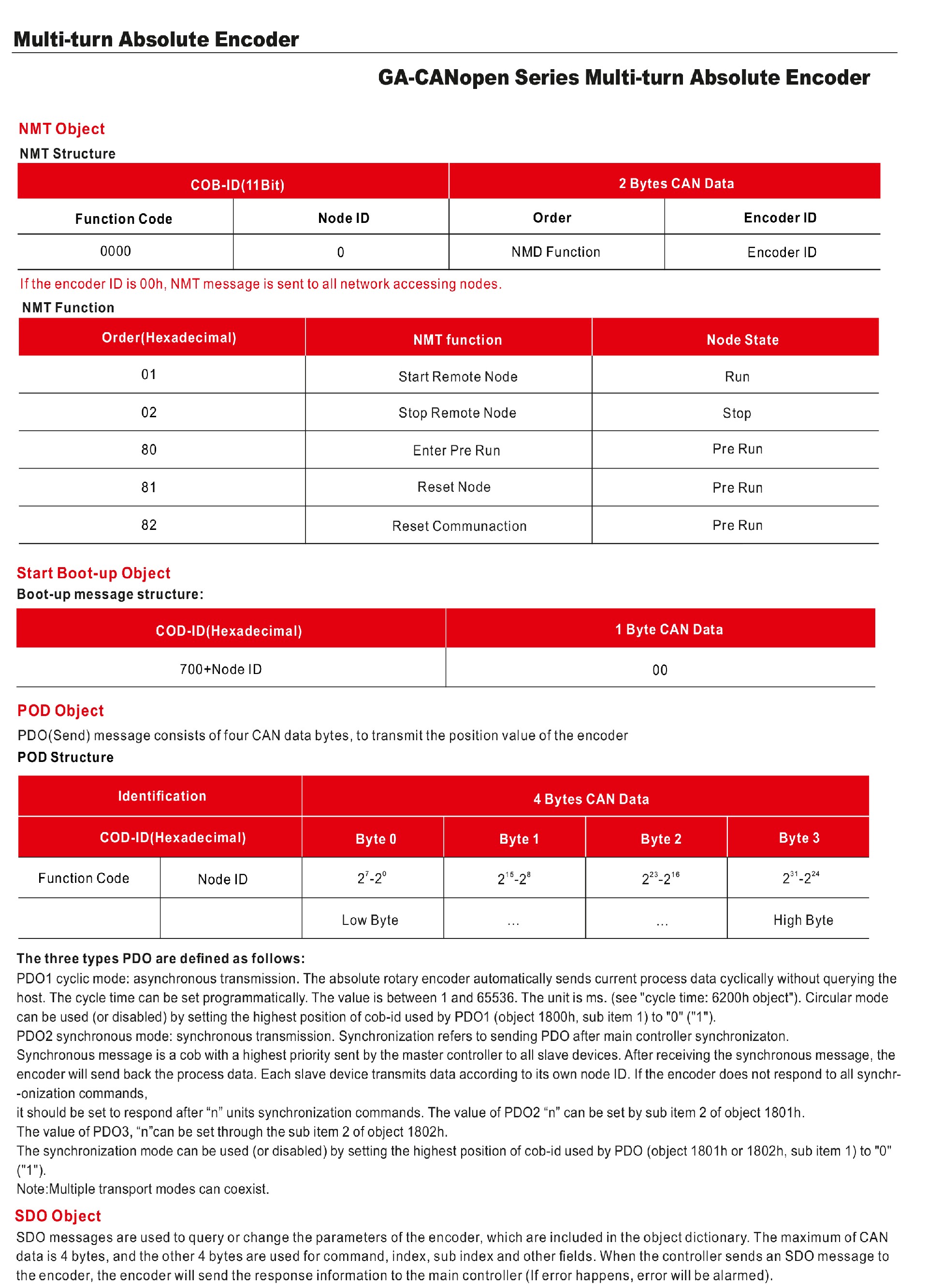

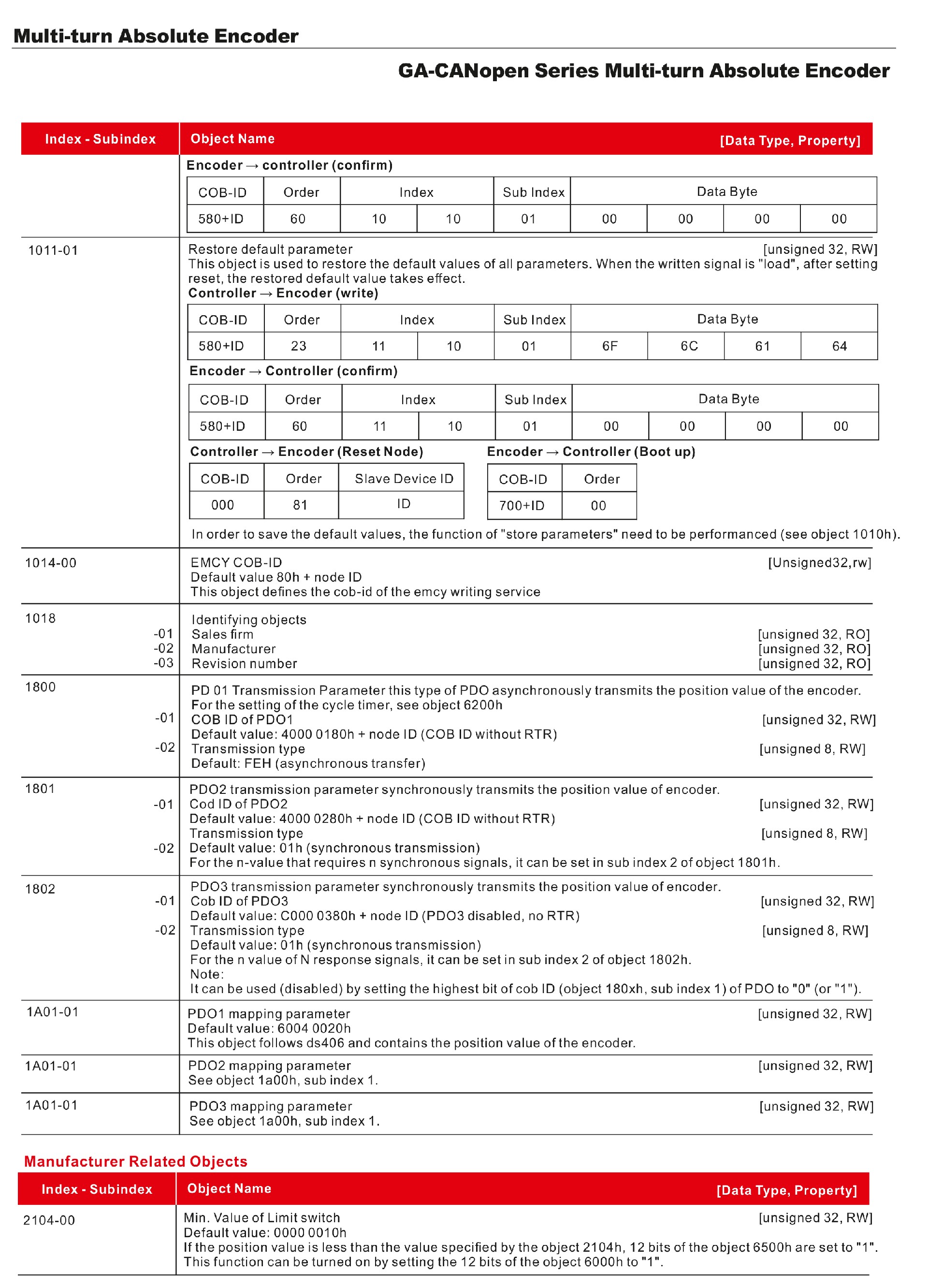

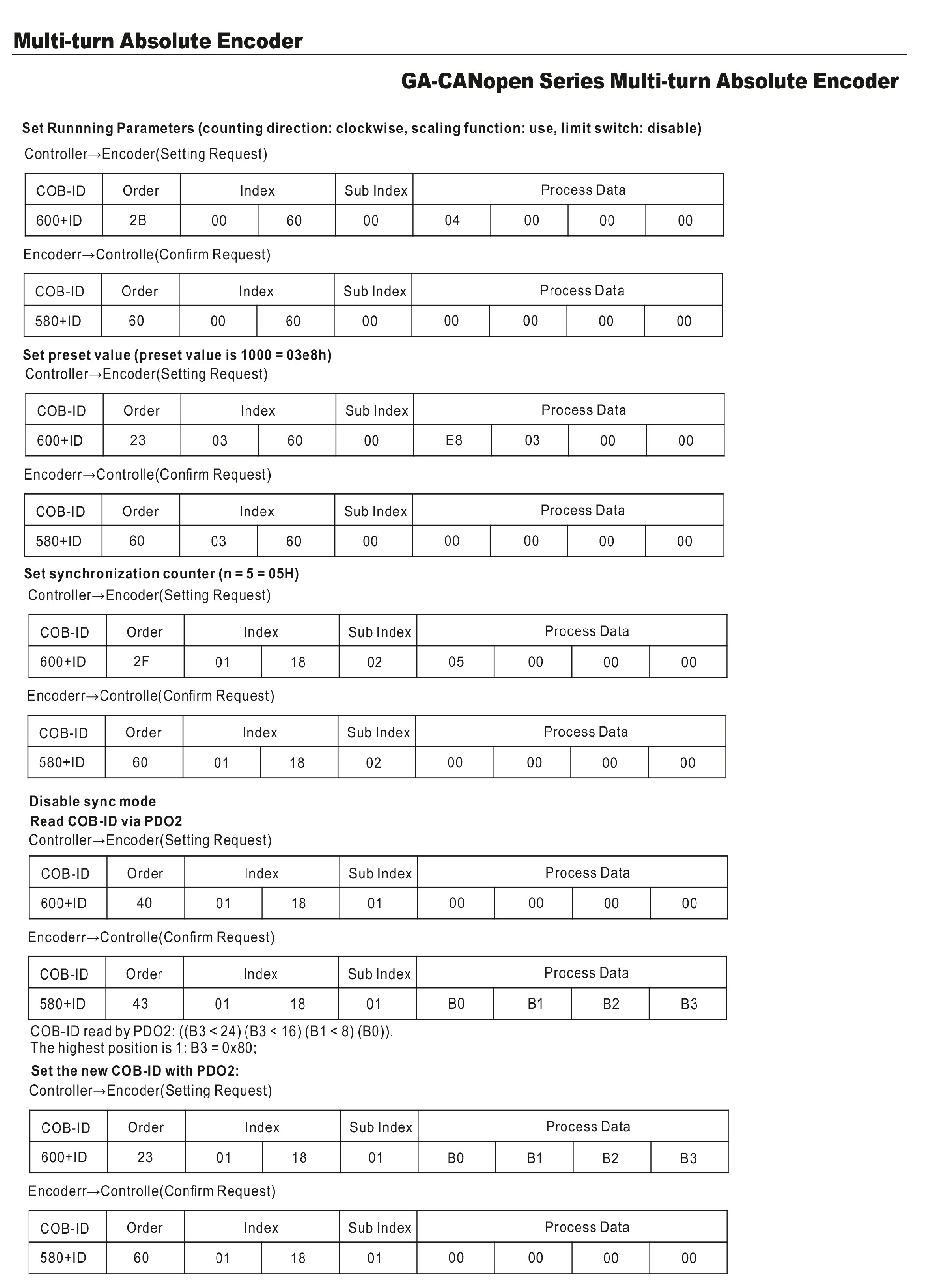

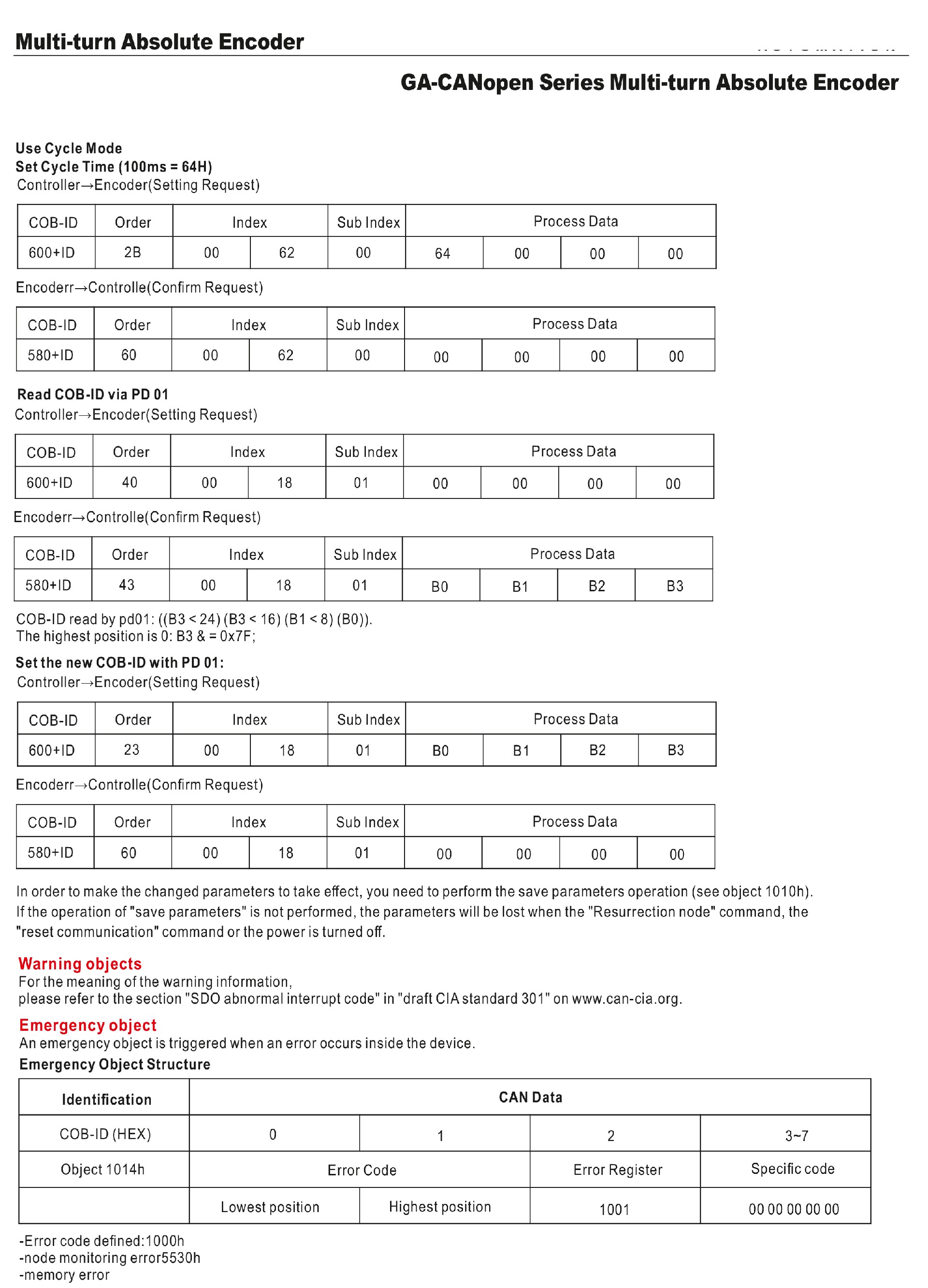

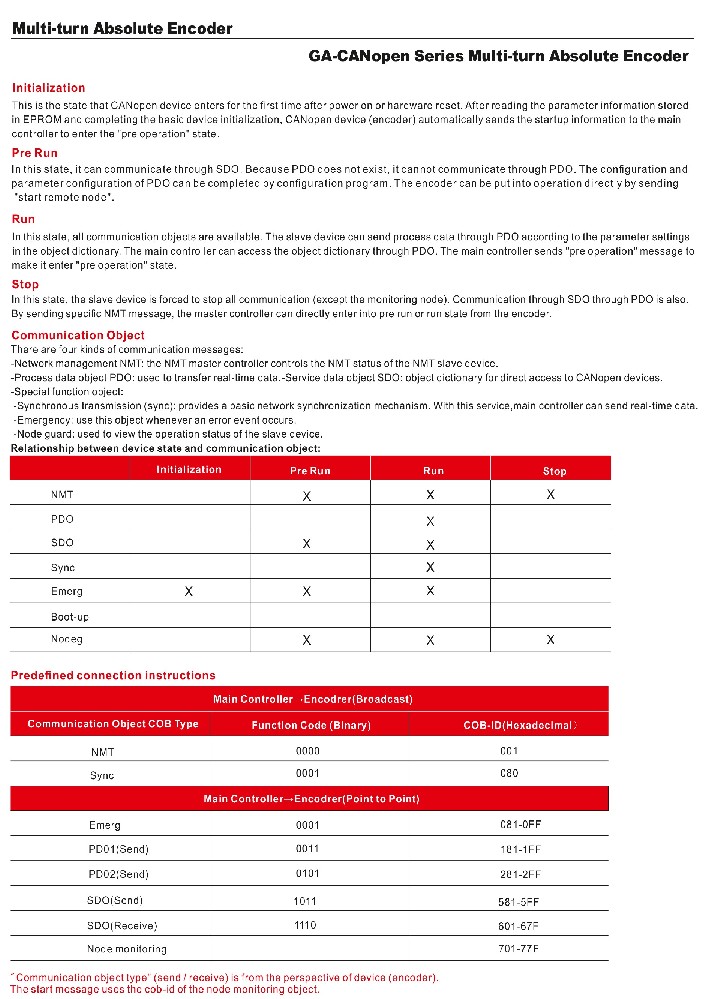

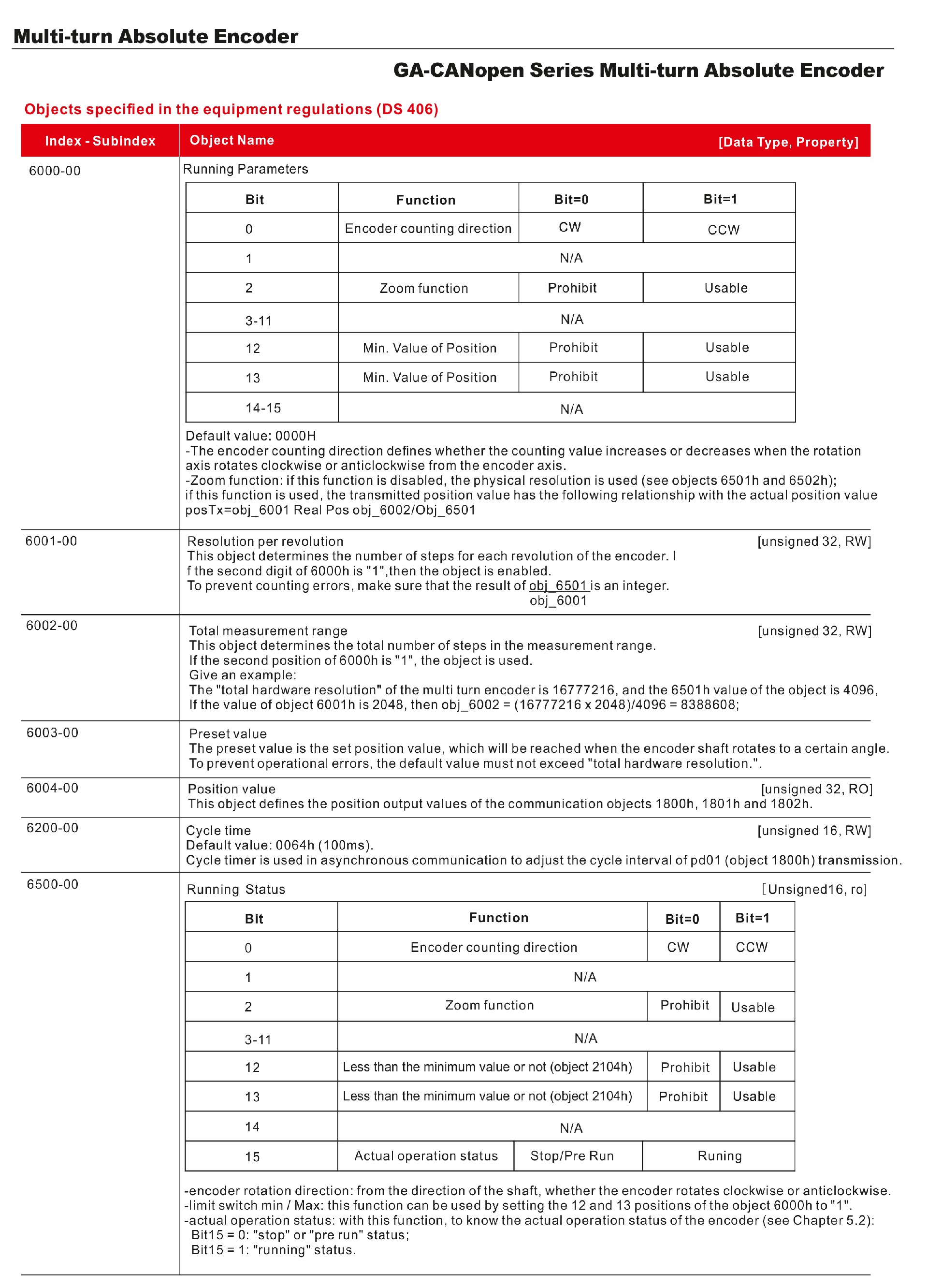

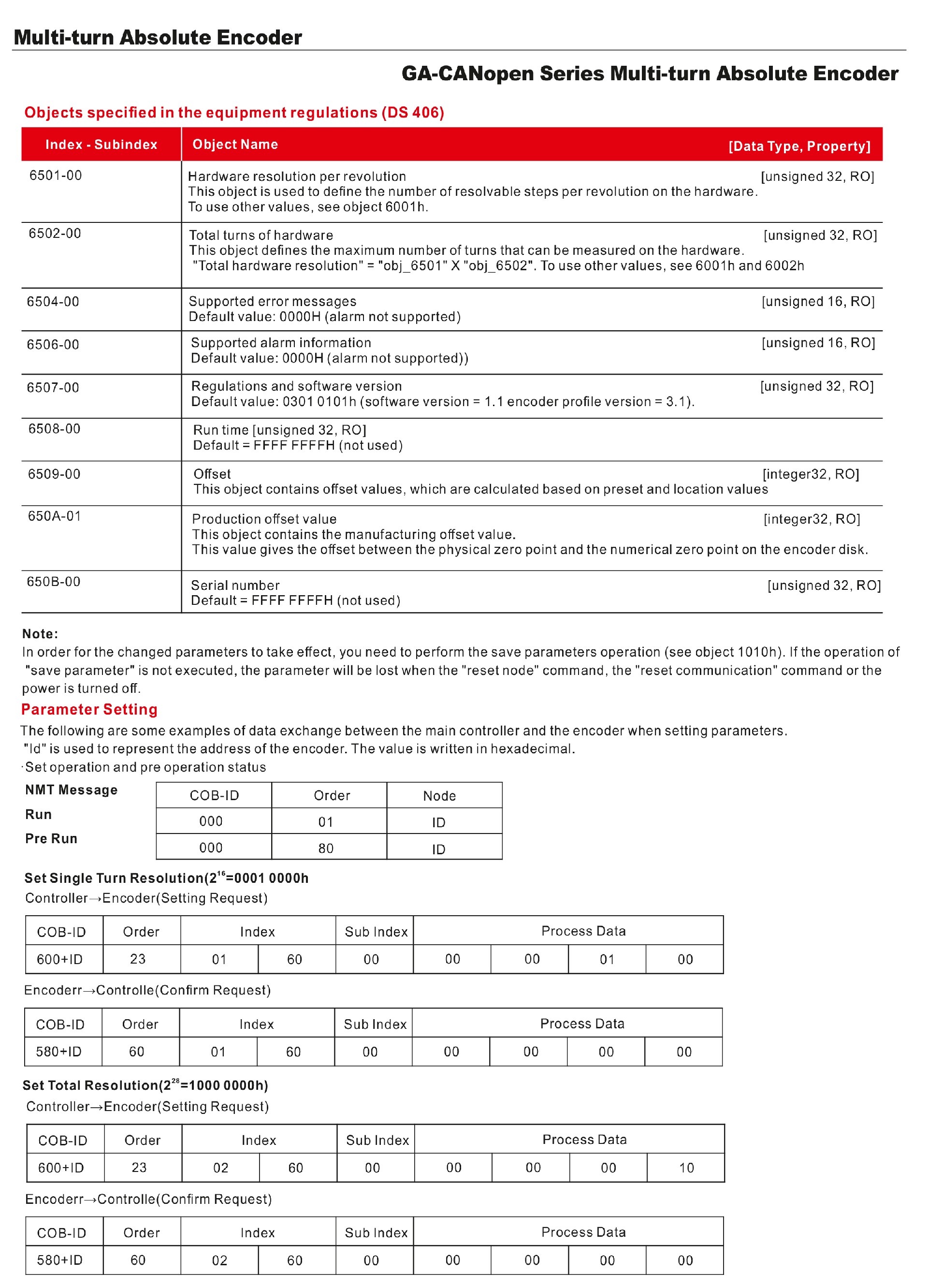

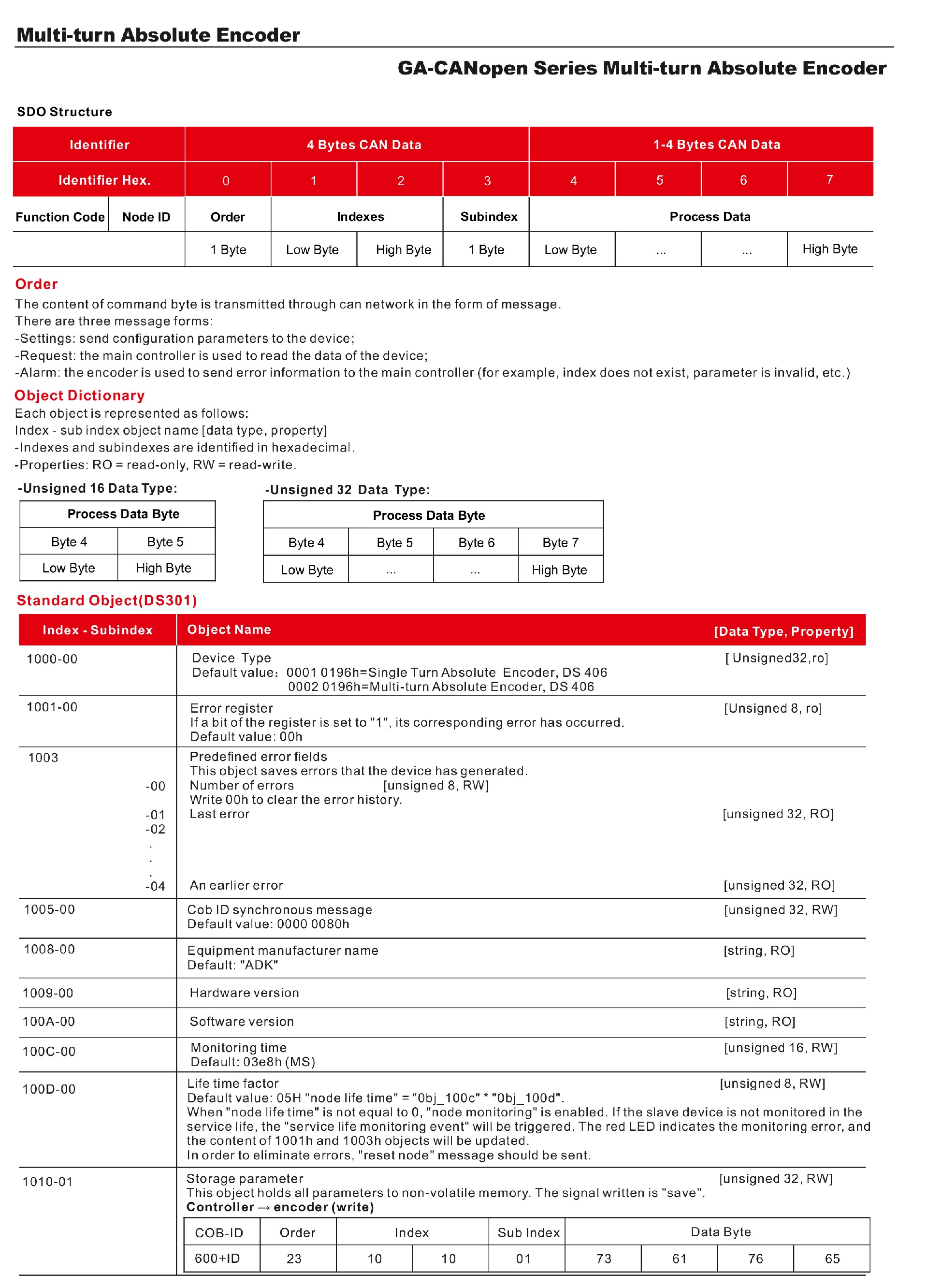

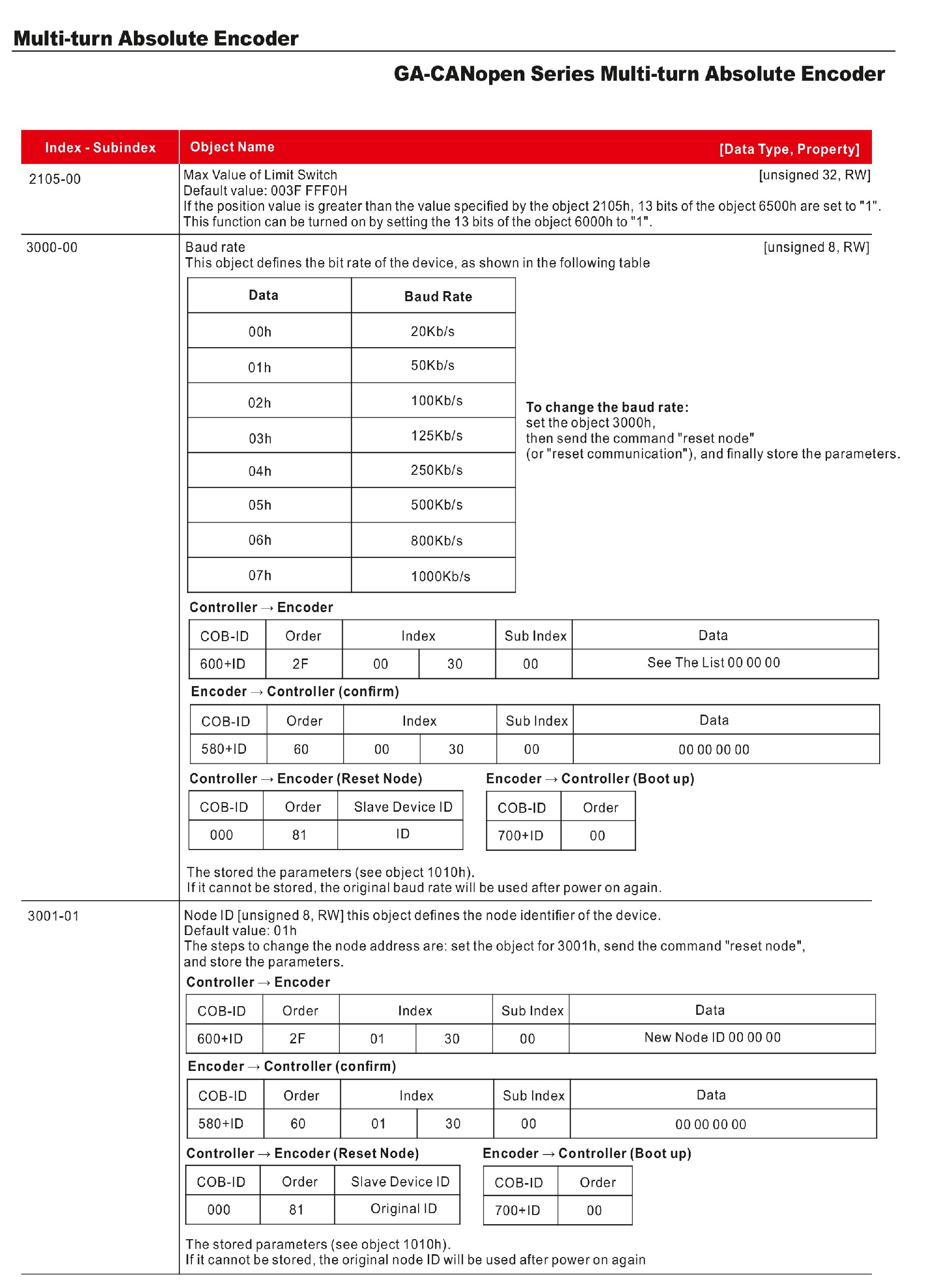

CANopen Operating States and Diagrams:
The documentation mentions the concept of state devices and includes operating state diagrams. Multiple references are made to files named CANopen.cdr; however, these drawings/diagrams are not shown here. For details, please refer to the relevant CANopen interface documentation.
Reference Documents:
For aspects not covered in this manual, please refer to CIA Standard Specification 301 and CIA Standard Specification 406, which can be obtained from www.can-cia.org.
Other Files:
The multiple mentions of CANopen.cdr indicate that there are CAD or diagram files related to the details of the CANopen interface and state transitions.

CANopen.cdr
